In this tutorial, we will compare the performance of different Concrete ML regressors with scikit-learn regressors. Concrete ML regressors have an API that is very similar to scikit-learn regressors, with two additional elements:
To test Fully Homomorphic Encryption (FHE) regressors, we can use a simulated FHE environment that is much faster than running in FHE. Although it does not operate over encrypted data, it is useful to design and train FHE-compatible regressors, as it allows the user to investigate whether the FHE constraints are met at design time.
Here, a single test data is executed in FHE to get the execution time and the decision function values for the domain grid are computed using an FHE simulation. Thus:
This notebook is the regressor version of the following tutorial : Tutorial: Comparison of Concrete ML Classifier.
.svg)
.svg){kind=icon}
import warnings
warnings.simplefilter(action="ignore", category=FutureWarning)
import time
from functools import partial
import matplotlib.pyplot as plt
import numpy as np
import torch
from sklearn.metrics import r2_score
from sklearn.model_selection import train_test_split
from sklearn.neural_network import MLPRegressor
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import PolynomialFeatures, StandardScaler
from concrete.ml.sklearn import (
DecisionTreeRegressor,
LinearRegression,
LinearSVR,
NeuralNetRegressor,
RandomForestRegressor,
XGBRegressor,
)
%matplotlib inline
rng = np.random.RandomState(42)def make_regression_data(
n_samples=200,
n_features=1,
bias=0.0,
noise_scale=1.0,
loc=0.0,
scale=1.0,
polynomial_exp=1,
target_scale=1.0,
feature_scale=1.0,
):
"""
Generates a dataset for regression models.
"""
X = rng.randn(n_samples, n_features)
# To avoid to have to big numbers on polynomial datasets
if polynomial_exp > 1:
feature_scale = 1
X = feature_scale * np.sort(X, 0)
scale = scale * polynomial_exp
noise = noise_scale * rng.normal(loc=loc, scale=scale, size=n_samples)
y = X.ravel() ** polynomial_exp + bias + noise
y *= target_scale
return X, yBefore diving deep into the topic, it's important to review some prerequisites.
Quantization is a technique that discretizes continuous data, such as floating point numbers, into a fixed range of integers. This process may result in some loss of information, but a larger integer range can reduce error, making it acceptable in some cases.
To learn more about quantization, you can refer to this page.
In the context of FHE, input data must be represented exclusively as integers, requiring the use of quantization. As a result:
To learn more about the relationship between the maximum bit-width reached within a model, the bits of quantization used, and the number of features in the data-set, please refer to this page.
The development flow for a Concrete ML Regressions model includes the following steps:
# pylint: disable=too-many-locals,too-many-statements
def make_regressor_comparison(title, regressors, **kwargs):
print(title)
# Create subplots where each column represents a polynomial degree
subplot_col = kwargs.get("polynomial_exp", 1)
fig, axs = plt.subplots(len(regressors), subplot_col, figsize=(15, 8), sharex=False)
# Create data-sets for each polynomial degree
for i in range(subplot_col):
kwargs_copy = kwargs.copy()
kwargs_copy["polynomial_exp"] = i + 1
X, y = make_regression_data(**kwargs_copy)
# Split the data into training and test sets
# Use 15 percent (30 points for a data-set of 200 points) for prediction
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)
sort_test_index = np.argsort(X_test.ravel())
X_test = X_test[sort_test_index, :]
y_test = y_test[sort_test_index]
# Feature preprocessing
# Linear models require polynomial features to be applied before training
# to fit a non-linear model and other models perform better with this transoformation
pipe = Pipeline(
[
("poly", PolynomialFeatures(i + 1)),
("scaler", StandardScaler()),
]
)
X_poly_train = pipe.fit_transform(X_train)
X_poly_test = pipe.transform(X_test)
# Iterate over the given regressors
for j, (regressor, model_name) in enumerate(regressors):
print(f"Evaluation of {model_name}")
if np.ndim(axs) > 1:
axs[0, i].set_title(f"Polynomial degree {i + 1}")
ax = axs[j, i]
else:
try:
axs[i].set_title(f"Polynomial degree {i + 1}")
ax = axs[i]
except IndexError:
ax = axs
ax.set_title(f"Polynomial degree {i + 1}")
# Plot the training points
ax.scatter(
X_train,
y_train,
edgecolors="k",
label="Train data",
)
# Plot the testing points
ax.scatter(
X_test,
y_test,
marker="D",
alpha=0.6,
edgecolors="k",
label="Test data",
)
# Instantiate the model
model = regressor()
# Train the model and retrieve both the Concrete-ML model and its equivalent one from
# scikit-learn
# If the model is a NeuralNetClassifier, instantiate a scikit-learn MLPClassifier
# separately in order to be able to be able to compare the results with a float model
# that doesn't use QAT
if model.__class__ == NeuralNetRegressor:
sklearn_model = MLPRegressor(
alpha=1,
activation="identity",
max_iter=1000,
hidden_layer_sizes=(25,),
learning_rate_init=0.005,
)
sklearn_model.fit(X_poly_train, y_train)
# When we apply PolynomialFeatures the input dim is equal to degree of polynome + 1
model.module__input_dim = i + 2
concrete_model = model.fit(X_poly_train, y_train.reshape(-1, 1))
else:
concrete_model, sklearn_model = model.fit_benchmark(X_poly_train, y_train)
# Compute the predictions in clear using the scikit-learn model
sklearn_y_pred = sklearn_model.predict(X_poly_test)
# Compile the Contrete-ML model
circuit = concrete_model.compile(X_poly_train)
print(
"Generating a key for a " f"{circuit.graph.maximum_integer_bit_width()}-bit circuit"
)
time_begin = time.time()
circuit.client.keygen(force=False)
time_end = time.time()
print(f"Key generation time: {time_end - time_begin:.2f} seconds")
# Compute the predictions in FHE using the Concrete-ML model
time_begin = time.time()
concrete_y_pred = concrete_model.predict(X_poly_test[:1], fhe="execute")
time_end = time.time()
print(f"Execution time: {(time_end - time_begin):.2f} " "seconds per sample in FHE")
# Compute predictions for all test examples with the simulate mode
concrete_y_pred = concrete_model.predict(X_poly_test, fhe="simulate")
# Measure the R2 score
sklearn_score = r2_score(sklearn_y_pred, y_test)
concrete_score = r2_score(concrete_y_pred, y_test)
is_a_tree_based_model = concrete_model.__class__ in [
DecisionTreeRegressor,
RandomForestRegressor,
XGBRegressor,
]
# If the model is not a tree-based model, retrieve the maximum integer bitwidth
# reached within its circuit.
bitwidth = None
if not is_a_tree_based_model:
bitwidth = circuit.graph.maximum_integer_bit_width()
# Plot the predictions
ax.plot(X_test, concrete_y_pred, c="blue", linewidth=2.5, label="Concrete-ML")
# Plot the predictions
ax.plot(X_test, sklearn_y_pred, c="red", linewidth=2.5, label="scikit-learn")
ax.text(
0.5,
0.80,
f"Concrete-ML R2: {concrete_score:.2f}\n scikit-learn R2: {sklearn_score:.2f}\n",
transform=ax.transAxes,
fontsize=12,
va="top",
ha="right",
)
if bitwidth:
ax.text(
0.75,
0.1,
f"bitwidth={bitwidth}",
transform=ax.transAxes,
fontsize=12,
va="bottom",
ha="left",
)
handles, labels = ax.get_legend_handles_labels()
fig.legend(handles, labels, loc="upper left")
scaler = 0.5
if len(regressors) == 3:
scaler = 0.3
fig.text(
-0.05, 0.75 - j * scaler, f"{model_name}", ha="center", va="bottom", fontsize=14
)
plt.tight_layout(pad=1.2)
plt.show()params_neural_net = {
"module__n_w_bits": 6,
"module__n_a_bits": 8,
"module__n_accum_bits": 16,
"module__n_hidden_neurons_multiplier": 10,
"module__n_layers": 2, # 1 hidden layer
"module__activation_function": torch.nn.Identity,
"max_epochs": 400,
"verbose": 0,
"lr": 0.1,
}
neural_network_regressor = [
(
partial(NeuralNetRegressor, batch_size=32, **params_neural_net),
"Neural Net",
),
]
make_regressor_comparison(
"NN Regressors",
neural_network_regressor,
n_samples=250,
polynomial_exp=3,
bias=20,
scale=0.25,
target_scale=1,
feature_scale=10,

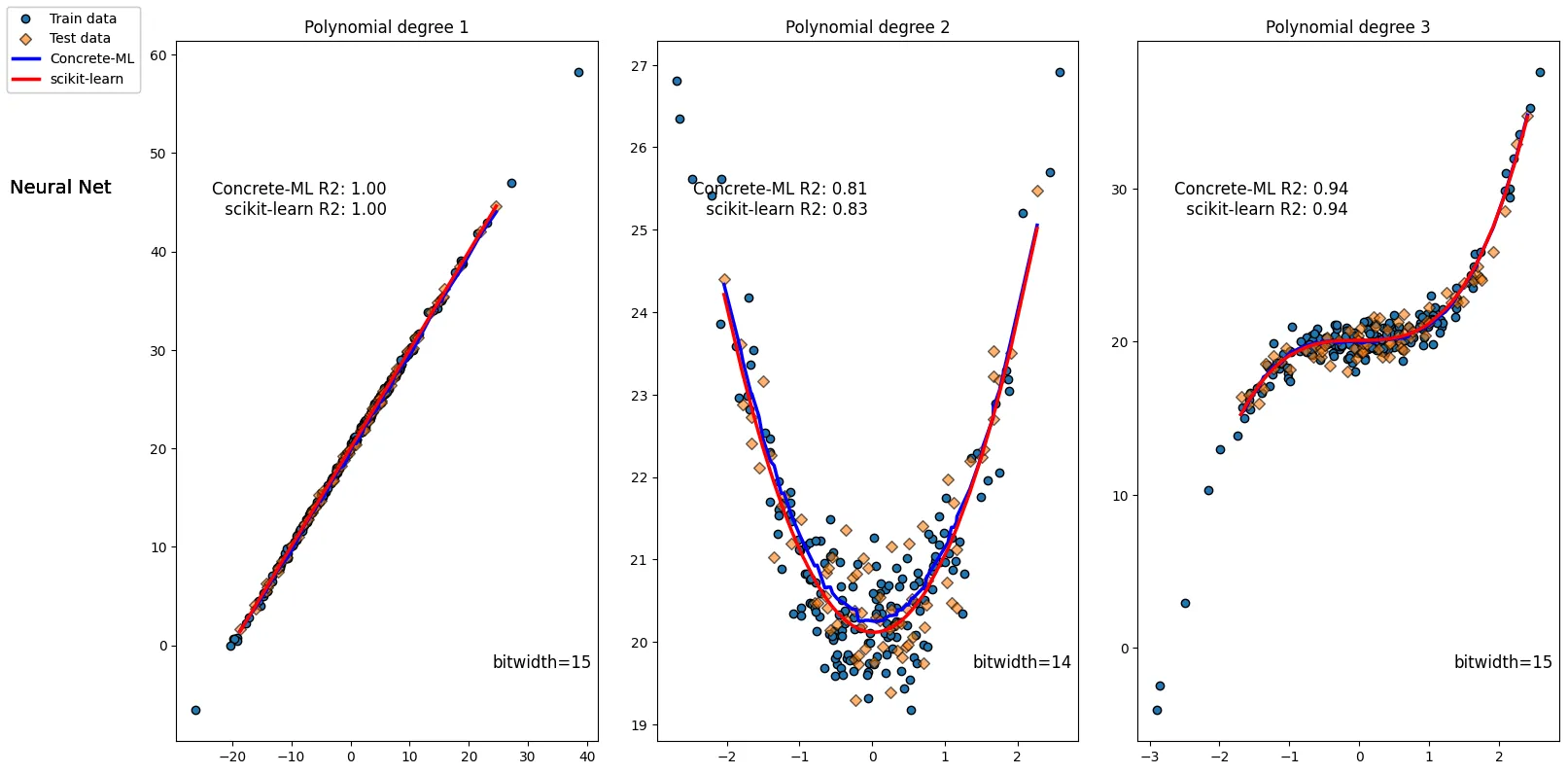

)NN Regressors
Evaluation of Neural Net
Generating a key for a 15-bit circuit
Key generation time: 7.86 seconds
Execution time: 27.66 seconds per sample in FHE
Evaluation of Neural Net
Generating a key for a 14-bit circuit
Key generation time: 6.29 seconds
Execution time: 20.40 seconds per sample in FHE
Evaluation of Neural Net
Generating a key for a 15-bit circuit
Key generation time: 7.47 seconds
Execution time: 20.75 seconds per sample in FHE.png)
np.random.seed(42)
linear_regressor = [
(partial(LinearSVR, n_bits={"op_inputs": 5, "op_weights": 2}, C=0.5), "Linear SVR"),
(partial(LinearRegression, n_bits={"op_inputs": 5, "op_weights": 2}), "Linear Regression"),
]

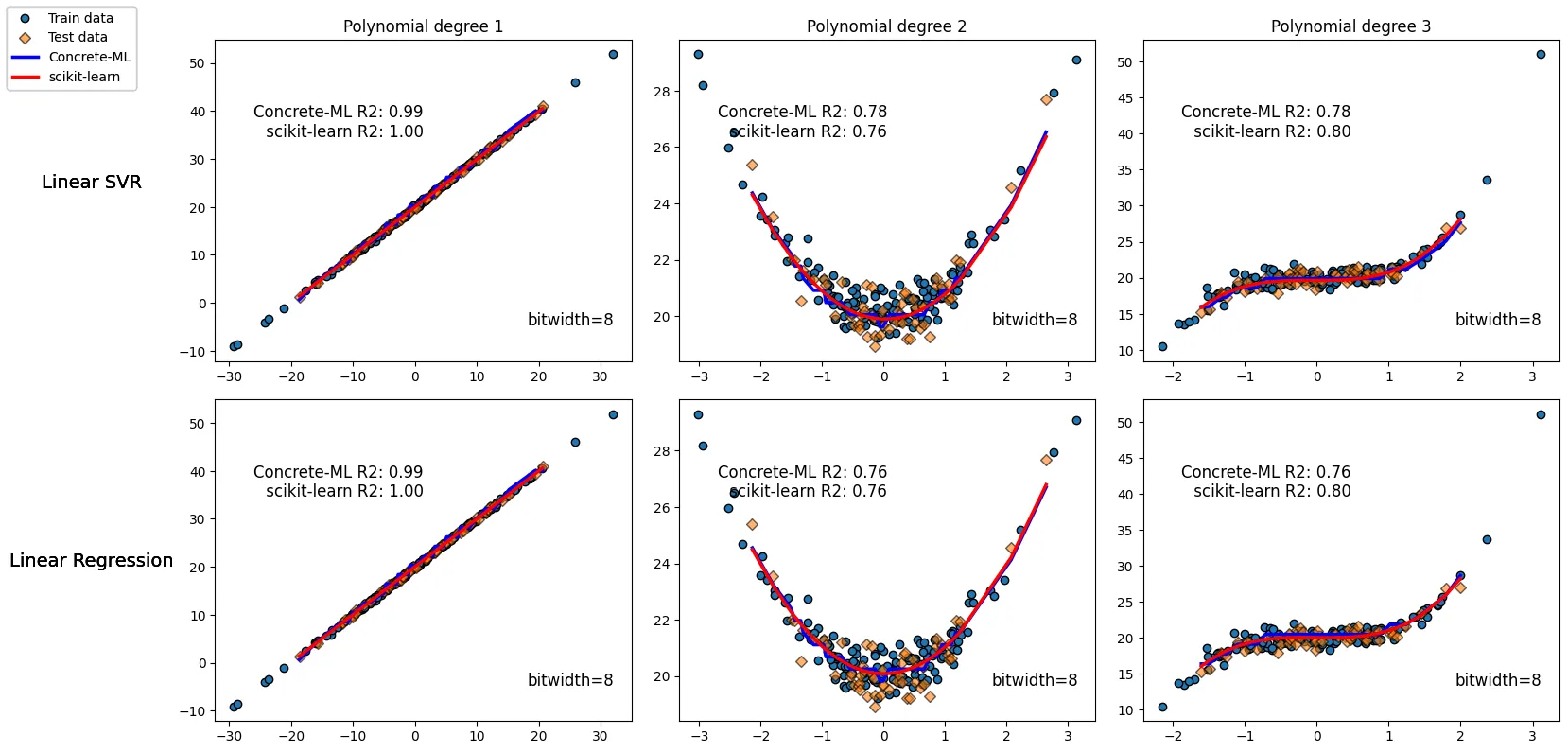

make_regressor_comparison(
"linear",
linear_regressor,
polynomial_exp=3,
bias=20,
scale=0.25,
target_scale=1,
feature_scale=10,
)np.random.seed(42)
linear_regressor = [
(partial(LinearSVR, n_bits={"op_inputs": 5, "op_weights": 2}, C=0.5), "Linear SVR"),
(partial(LinearRegression, n_bits={"op_inputs": 5, "op_weights": 2}), "Linear Regression"),
]
make_regressor_comparison(
"linear",
linear_regressor,
polynomial_exp=3,
bias=20,
scale=0.25,
target_scale=1,
feature_scale=10,
).png)
tree_regressors = [
(partial(DecisionTreeRegressor, n_bits=5, max_depth=5), "Decision Tree"),
(partial(RandomForestRegressor, n_bits=5), "RandomForestRegressor"),
(
partial(XGBRegressor, n_bits=6, n_estimators=50, max_depth=3, gamma=1, learning_rate=0.3),
"XGB",
),
]
make_regressor_comparison(
"Tree-Based Regressors",
tree_regressors,
n_samples=300,
polynomial_exp=3,
bias=20,
scale=0.25,
target_scale=1,
feature_scale=10,

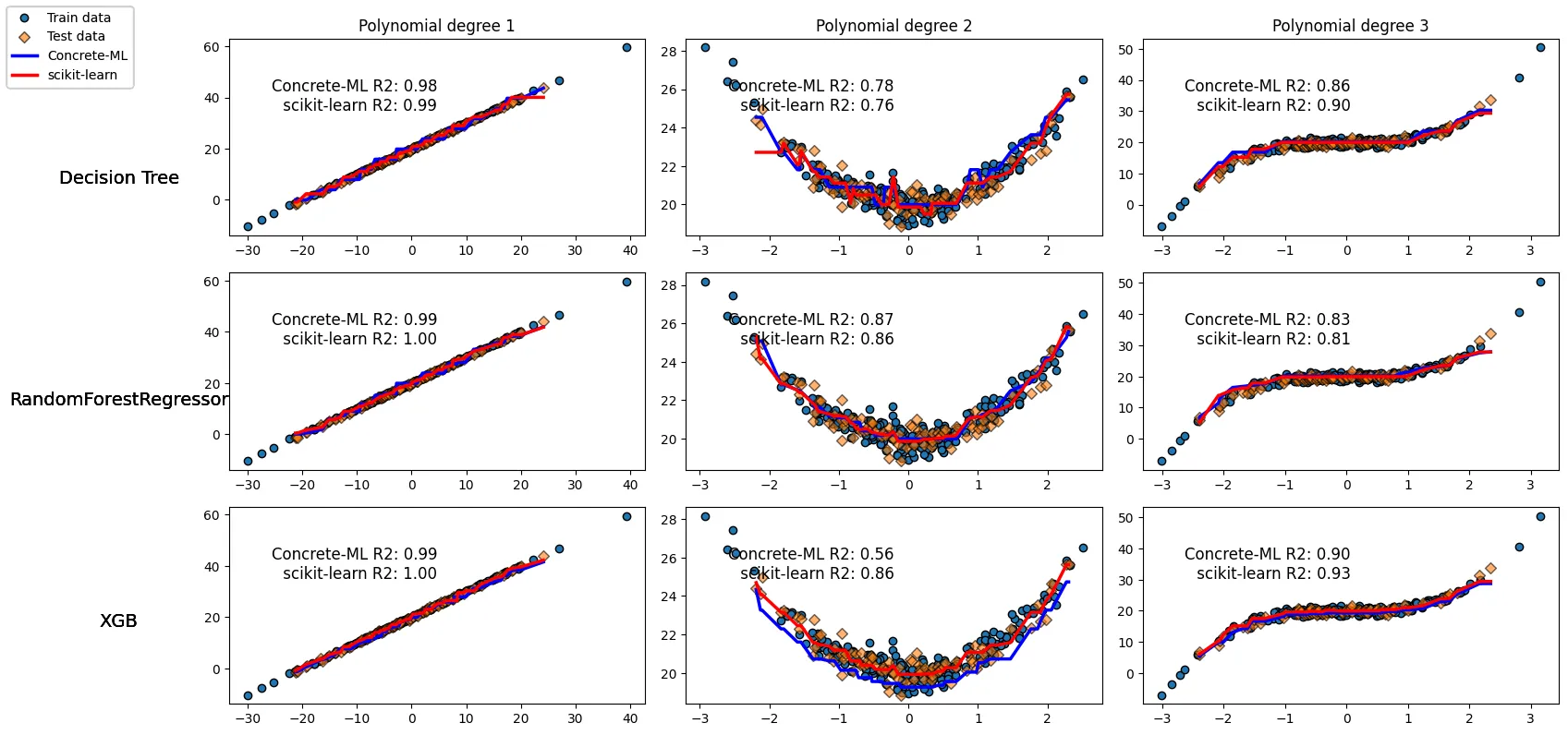

)Tree-Based Regressors
Evaluation of Decision Tree
Generating a key for a 5-bit circuit
Key generation time: 2.97 seconds
Execution time: 0.81 seconds per sample in FHE
Evaluation of RandomForestRegressor
Generating a key for a 5-bit circuit
Key generation time: 2.61 seconds
Execution time: 1.00 seconds per sample in FHE
Evaluation of XGB
Generating a key for a 6-bit circuit
Key generation time: 7.72 seconds
Execution time: 2.52 seconds per sample in FHE
Evaluation of Decision Tree
Generating a key for a 5-bit circuit
Key generation time: 2.50 seconds
Execution time: 0.34 seconds per sample in FHE
Evaluation of RandomForestRegressor
Generating a key for a 5-bit circuit
Key generation time: 2.51 seconds
Execution time: 0.92 seconds per sample in FHE
Evaluation of XGB
Generating a key for a 6-bit circuit
Key generation time: 7.05 seconds
Execution time: 1.47 seconds per sample in FHE
Evaluation of Decision Tree
Generating a key for a 5-bit circuit
Key generation time: 2.51 seconds
Execution time: 0.33 seconds per sample in FHE
Evaluation of RandomForestRegressor
Generating a key for a 5-bit circuit
Key generation time: 2.51 seconds
Execution time: 0.86 seconds per sample in FHE
Evaluation of XGB
Generating a key for a 6-bit circuit
Key generation time: 7.05 seconds
Execution time: 5.07 seconds per sample in FHE
.png)
We compared the performance of different linear regression models using Concrete ML and scikit-learn libraries in Python. The purpose of this tutorial was to show the effectiveness of linear regression models in Fully Homomorphic Encryption (FHE) and to provide a comparison between the different models.
We evaluated three types of linear regression models using an R2 score:
The R2 score of the Concrete regressors is measured on encrypted data. These regressors work with parameters and inputs that are heavily quantized and, thus, show R2 score loss (especially in XBGRegressor):
One way to reduce the performance gap between FHE and their fp32 counterparts for complex models like neural networks or XGBRegressor, which require more hyperparameter optimization work, is to use the GridSearch method separately on both FHE and fp32 models. This is recommended instead of using the ".fit_benchmark" method, which forces the use of the same hyperparameters on both models. For an example using GridSearch in the context of Concrete ML, please refer to this (page)[https://github.com/zama-ai/concrete-ml/blob/release/0.6.x/docs/advanced_examples/LinearRegression.ipynb]
It should be noted that the number of samples is relatively low for runtime purposes, especially for tree-based models and neural networks, where feature engineering was not performed.
Refer to Classifier version of this notebook
